Embrace the new era of 400G transport and data center interconnect. The advent of 400G ZR and Open ZR+ modules has unlocked the potential of open pluggable DWDM optics, allowing for seamless IP over DWDM and data center interconnect services.
Introducing ProLabs' modular line system, designed to streamline your DCI deployments. Our fully pluggable solution combines the convenience of pluggable optical amplifiers (available in QSFP-DD Dual Pluggable or QSFP Pluggable form factors) with an easy-to-use 8-channel optical power colorless splitter and LC parking adapter.
Explore our cutting-edge pluggable modular line system, and experience effortless optimization of your DCI and IP-over-DWDM deployments.
QSFP-DD Dual Pluggable EDFA
 | |
QSFP-DD Dual Pluggable EDFA Booster amplifier for DWDM, Duplex LC, Input power -20dBm to 0dBm, Nominal gain +20dB | |
Cisco® Compatible QSFP-DD Dual Pluggable EDFA Booster amplifier for DWDM, Duplex LC, Input power -20dBm to 0dBm, Nominal gain +20dB | |
Juniper Networks® Compatible QSFP-DD Dual Pluggable EDFA Booster amplifier for DWDM, Duplex LC, Nominal gain +20dB | |
Features & Benefits:
- Cost-effective solution that offers amplification for QSFP-DD ZR and Open ZR+.
- Only pluggable EDFA that provides LC connectors for both input and output.
- Supports up to 8 channels with 120km ZR and Open ZR+ capabilities.
- Combines both boost and pre-amp amplifiers in a single pluggable device.
- Ideal for lower density point to point deployments.
QSFP Pluggable EDFA
 | |
QSFP28 Pluggable EDFA QSFP28 Booster amplifier for DWDM, Tx side, duplex LC, Input power -20dbm to 0dbm, Nominal gain 17db | |
QSFP28 Pluggable EDFA QSFP28 preamplifier for DWDM, Tx side, duplex LC, Input power -30dbm to -10dbm, Nominal gain 17db | |
Features & Benefits:
- Adjustable output power of up to +17dBm.
- Operating temperature range: 0°C to 70°C.
- Compact footprint with open line system functionality.
- Integration into existing OLS or ROADM platforms without the need for additional rack space.
- Embedded gain flattened-filter (GFF) and individual boost & pre-amp options over maximum flexibility.
Colorless Splitter 2 1x8
 | |
Dual Colorless Splitter, Duplex 1x8 PLC Splitter, Duplex LC connectors, 1M, SMF | SKU: C-2X1XLC8XLCPLC1MSM |
Features & Benefits:
- Supports up to eight channels.
- Operating wavelength: 1260nm to 1650nm.
- Withstands industrial temperatures of -40°C to 85°C.
QSFP LC Parking Adapter
 | |
QSFP Parking Adapter, LC or MPO Connector Compatibility Duplex/Simplex w/Dust Covers, 12 Piece | SKU: C-PLG-QSF-12 |
Features & Benefits:
- Streamlines access for swift turnup of future services.
- Facilitates secure and efficient management of loose duplex LC connectors.

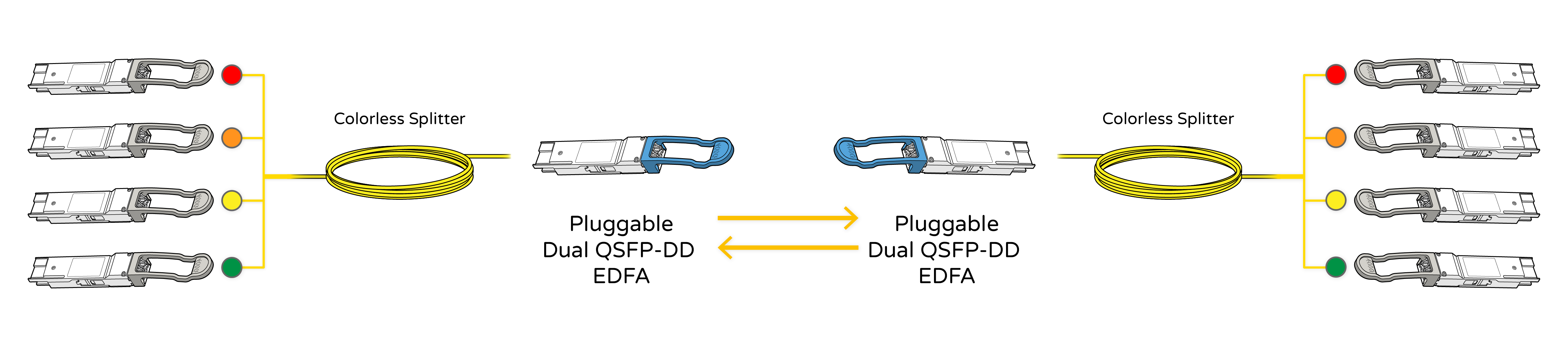

Watch our application video for the Modular Line System:
