Higher capacity networks and data center applications are looking for alternatives to reduce power consumption in their infrastructure as the current solutions available are insufficient.
ProLabs' innovative low-power AOCs support long reach interconnects in order to provide high-speed, high-density, and cost-effective solutions. The QSFP28 100G AOC increases port density while cutting overall costs and the QSFP-DD 400G AOC offers solutions with up to 400G aggregate bandwidth and 100m over parallel multi-mode fiber.

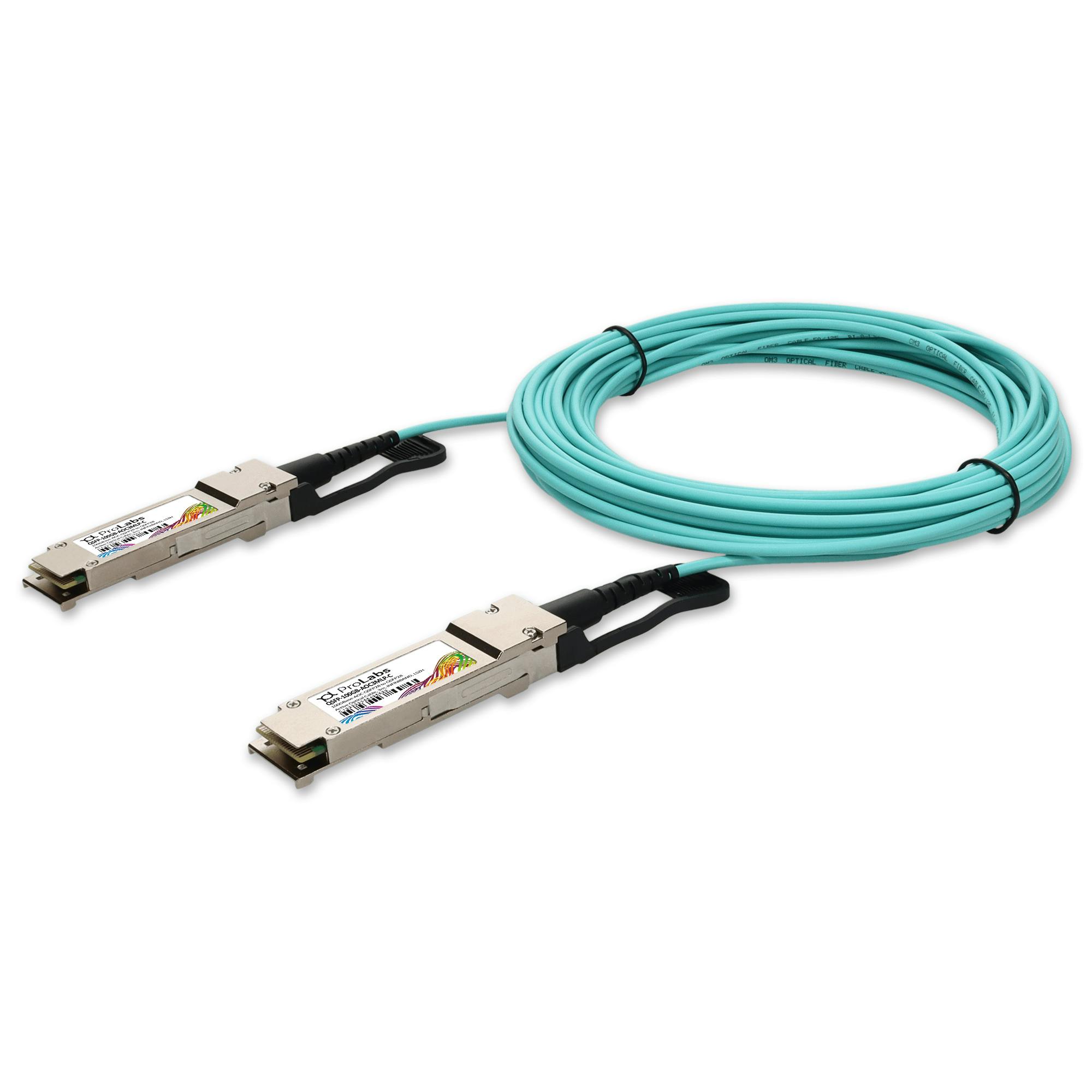

Low-Power QSFP28 100G AOC
| |
MSA and TAA 100GBase-AOC QSFP28 to QSFP28 Low Power Active Optical Cable (850nm, MMF, 3m, Infiniband EDR, LSZH) | SKU: QSFP-100GB-AOC3MLP-C |
Cisco® Compatible TAA 100GBase-AOC QSFP28 to QSFP28 Low Power Active Optical Cable (850nm, MMF, 3m, Infiniband EDR, LSZH) | |
Arista Networks® Compatible TAA 100GBase-AOC QSFP28 to QSFP28 Low Power Active Optical Cable (850nm, MMF, 3m, Infiniband EDR, LSZH) | |
Juniper Networks® Compatible TAA 100GBase-AOC QSFP28 to QSFP28 Low Power Active Optical Cable (850nm, MMF, 3m, Infiniband EDR, LSZH) | |
Mellanox® Compatible TAA 100GBase-AOC QSFP28 to QSFP28 Low Power Active Optical Cable (850nm, MMF, 3m, Infiniband EDR, LSZH) | |
3m reach shown above for reference. Click here to see all lengths. | |
Features & Benefits:
- Up to 100m links over OM4 multi-mode fiber.
- 4-channel full duplex with single 3.3V power supply.
- Low power consumption at 1.7W per cable end.
- Operating temperature ranging from 0°C to 70°C.
- Guaranteed full OEM compatibility and a lifetime warranty.

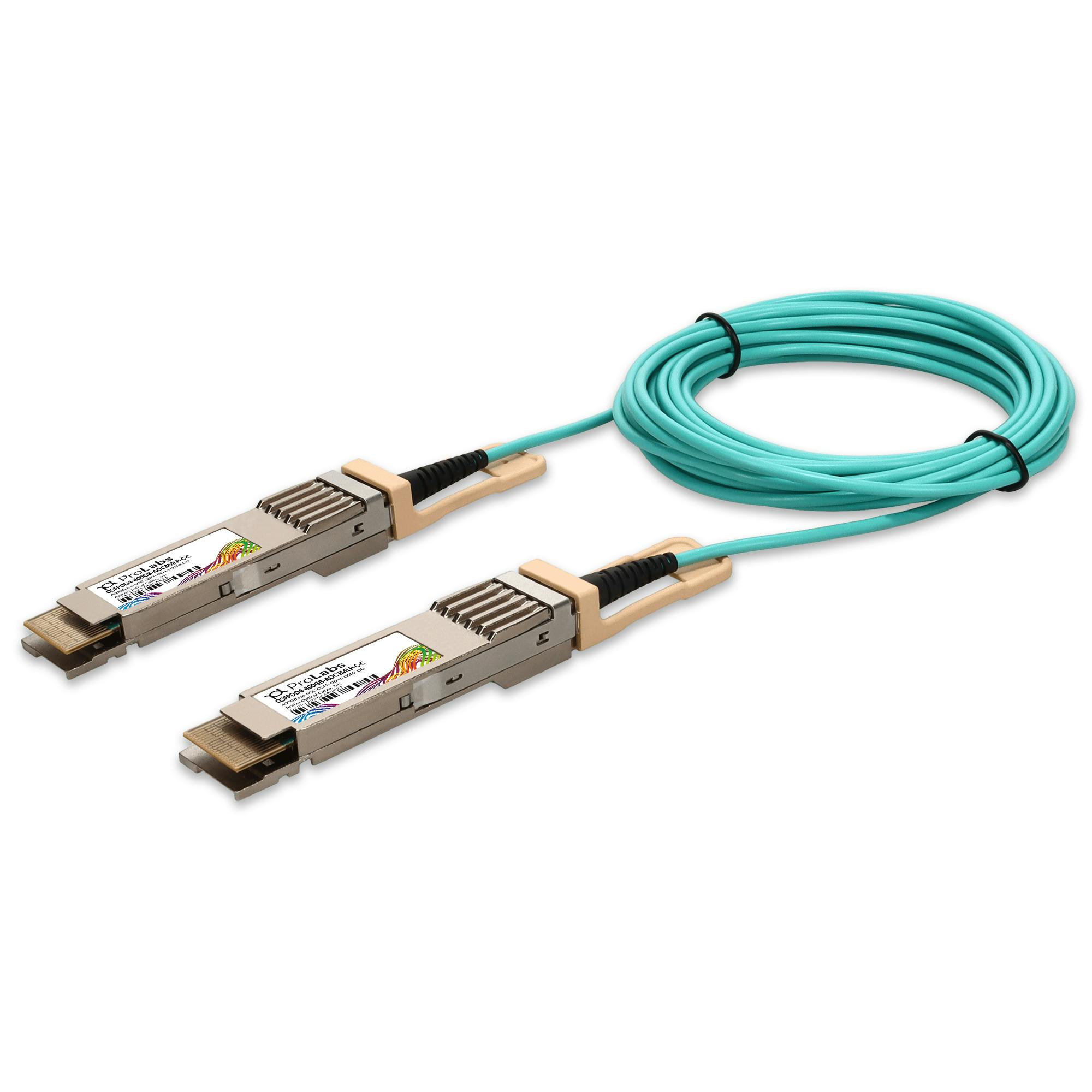

Low-Power QSFP-DD 400G AOC
| |
MSA and TAA 400GBase-AOC QSFP-DD to QSFP-DD Low Power Active Optical Cable (850nm, MMF, 3m) | |
Cisco® Compatible TAA 400GBase-AOC QSFP-DD to QSFP-DD Low Power Active Optical Cable (850nm, MMF, 3m) | |
Arista Networks® Compatible TAA 400GBase-AOC QSFP-DD to QSFP-DD Low Power Active Optical Cable (850nm, MMF, 3m) | |
Juniper Networks® Compatible TAA 400GBase-AOC QSFP-DD to QSFP-DD Low Power Active Optical Cable (850nm, MMF, 3m) | |
3m reach shown above for reference. Click here to see all lengths. | |
Features & Benefits:
- Up to 100m links over OM4 multi-mode fiber.
- Low-power, low-latency analog CDR.
- Low power consumption at 7.6W per cable end.
- Operating temperature ranging from 0°C to 70°C.
- Guaranteed full OEM compatibility and a lifetime warranty.
