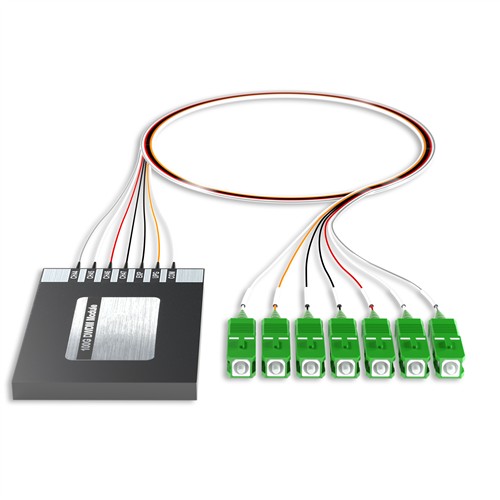

4+2 Channel OSP DWDM Mux/Demux C44-C47 with Upgrade and Express Ports, SC/APC Connectors on 24in Single-Mode Pigtails

This 4-Channel DWDM Optical Passive Mux/Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C44–C47 (1525–1570nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes both an Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 1525–1570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (1260–1520nm and 1580–1620nm), providing a cost-effective path for network growth. Equipped with SC/APC connectors on 24-inch, 900µm fiber pigtails, this DWDM Mux/Demux is optimized for outside plant environments (OSP) and easily integrates into standard fiber optic splice enclosures.
