400G_From 50Gbps PAM4 to 100Gbps PAM4

What's the difference between 400GBASE-LR8 and 400GBASE-LR4?

Both QSFP-DD and OSFP transceivers can transmit at 400Gbps using 8 lanes of 50Gbps PAM4 or 4 lanes at 100Gbps PAM4. But what's the real difference behind 50Gbps PAM4 and 100Gbps PAM4? How do we achieve this transition?



For all optical transceivers transmitting up to 100Gbps, a NRZ mechanism (binary non-return to zero) is used. In practical, we can transmit 1 bit per waveform (0 or I).

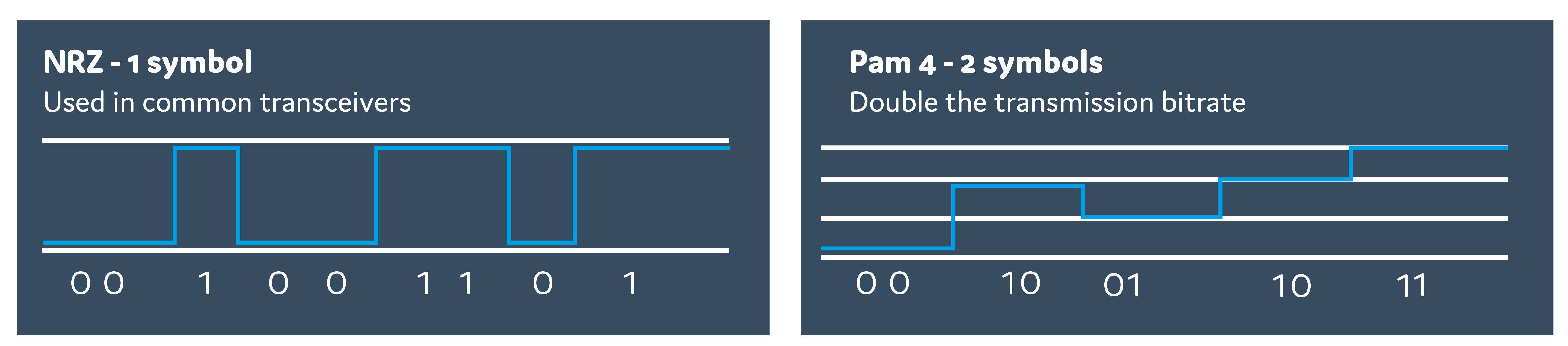

With PAM4 modulation (pulse amplitude modulation), each waveform can carry 2 bits (instead of 1 for NRZ). To achieve that, the waveform has 4 different levels, carrying 2 bits: 00, 01, 10 or 11.


The baudrate wording has not been used in optical transmission until now because there is an equivalence between baudrate and bitrate for NRZ transmission. A baud is the unit representing the symbol rate and is becoming significantly important for 400G transmission.

A transmission with NRZ mechanism will have the same baudrate and bitrate because one symbol can carry one bit. 25Gbps (gigabit per second) bitrate is equivalent to 25GBdps (gigabaud per second) baudrate.

Because PAM4 is carrying 2 bits per symbol, it is important to make a difference between baud rate and bitrate: 50Gbps PAM4 (50 gigabit per second with PAM4 modulation) will have a line transmission at 25GBdps (Gigabaud per second). It means that for 50Gbps PAM4, the symbol rate remains to 25 Gigabaud.

Parallel optic

A regular 100G QSFP28 doesn't transmit at 100Gbps but at 4x 25Gbps; it has, inside the module, 4 lasers and 4 receivers.

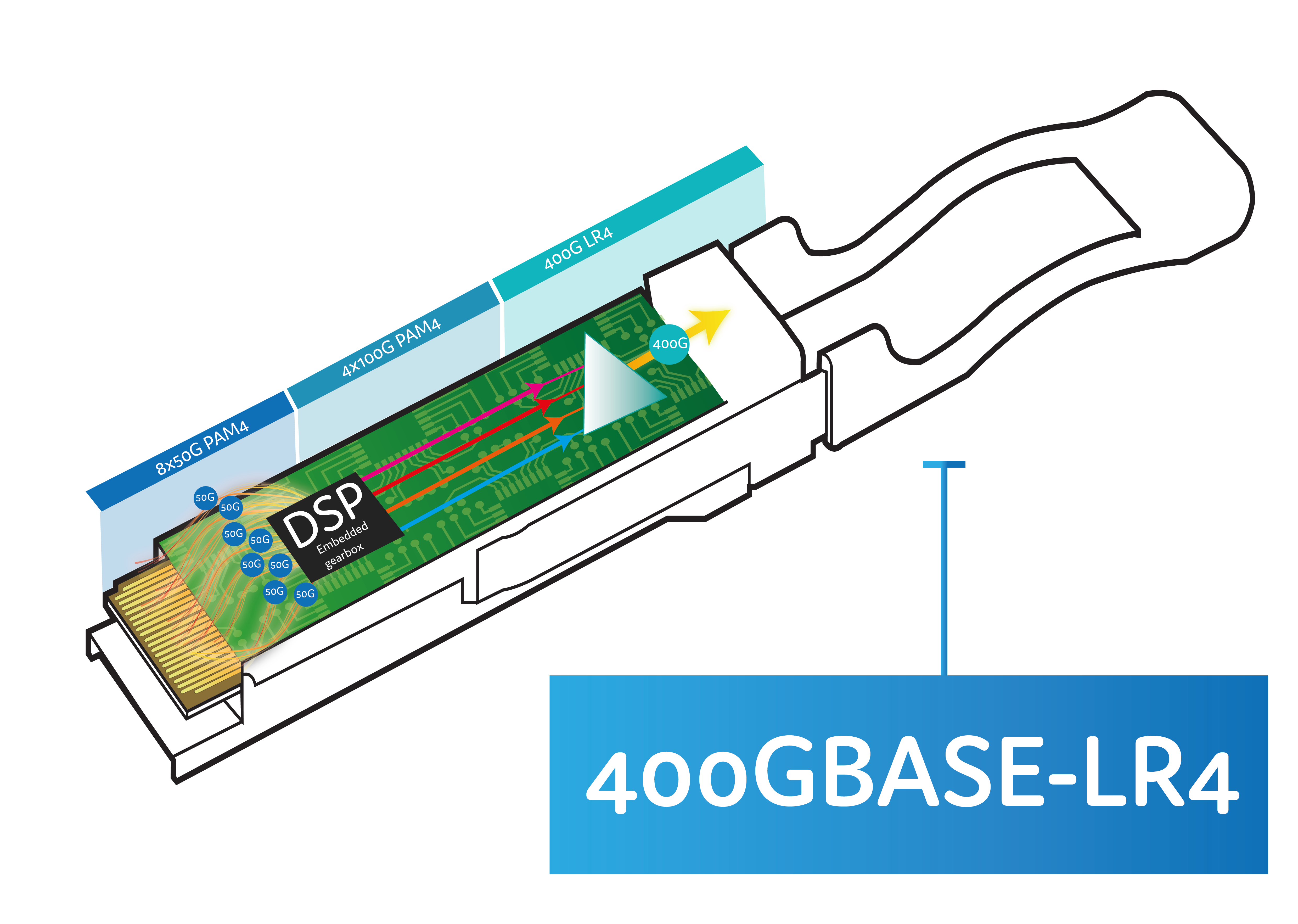

The actual 400G transceivers (QSFP-DD and OSFP) always have 8 lanes of 50Gbps PAM4 on the electrical side (400GAUI-8) and have 8 lasers of 50Gbps PAM4 or 4 lasers of 100Gbps PAM4. For the last version, an electrical conversion (Gearbox) from 8x 50Gbps PAM4 to 4x 100Gbps PAM4 is required.

The gearbox

The gearbox is a component converting a specific amount of data lines at a nominal bitrate to a lower or higher amount of data lines at another bitrate, following a ratio. The gearbox can do the same job in the opposite direction also called as "reverse gearbox".

The gearbox is not a new concept but is now getting a real importance for the 400G applications:

In the most recent designs, the gearbox is embedded into a DSP IC (Digital Signal Processor, Integrated Circuit) which can have additional functionalities, such as equalization, retiming, etc.

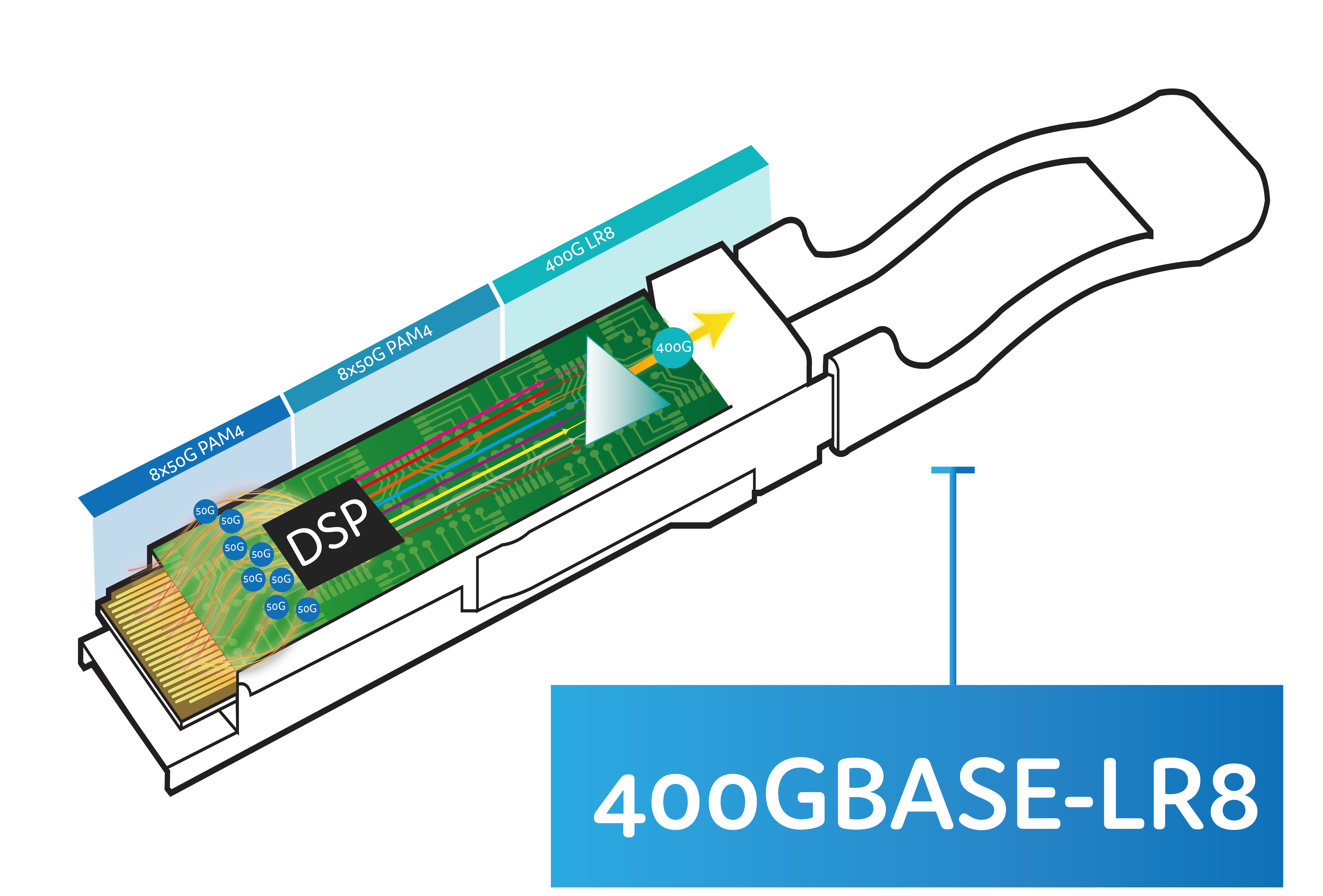

The gearbox presence can be easily identified following the optical standard: a QSFP56-DD 400GBASE-

LR8 doesn't have a gearbox while the 400GBASE-LR4 does.

Transmitting at 100Gbps PAM4

The signal integrity is becoming extremely challenging when transmitting at 100Gbps PAM4 per lane;

considerably reducing the maximum optical reach.

While 400GBASE-LR8 (8x 50Gbps PAM4) is now mature, the 400GBASE-LR4 (4x 100Gbps PAM4) is clearly on the edge and doesn't have any margin left. A strong FEC mechanism will be required to bring the communication at a correct BER for a regular 400G connection.

The above eye diagrams show a higher complexity for the 100Gbps PAM4 compared to a 50Gbps PAM4.

This higher complexity reduces the margin and brings higher requirements to avoid chromatic dispersion, jitter, etc. With regular technology, the maximum reach is lower with 4x100Gbps PAM4 compared to 8x50Gbps PAM4.


The right technology must be chosen following the needs and application. 4x100Gbps transmission is interesting as it only uses 4 lasers instead of 8. It lowers the power consumption, reduce the hardware complexity and relax the requirement on xWDM grid; however, it requires a gearbox and it's clearly bringing a challenge in term of reach.

If the gearbox cost is dropping down in the future, the 4x100Gbps seems more interesting for the datacentres, clearly for 2 different applications:

For link with a reach of maximum 10km, 400GBASE-LR8 is available and ratified under IEEE 802.3bs. The 400GBASE-LR4 is not ratified by the IEEE committee yet.
